ASRock (Z390M-ITX/AC) Motherboard | Worldwide Free Shipping

ASRock (Z390M-ITX/AC) Motherboard | Worldwide Free Shipping

208 in stock

Save: US$ 215 (34%)


Shipping-box Worldwide Dropshipping
     Save on shipping

Brand: ASRock.
Product type: Motherboard.
Socket: LGA1151. Supports 9th and 8th generation Intel Core processors.
Item model number: Z390M-ITX / AC.
Item Weight: 1.76 pounds.
Product Dimensions: 10.8 x 8.4 x 2.3 inches.
Computer memory type: DDR4 SDRAM.
Batteries: 1 CR2 required (s), included (s).

Condition: New, in original packaging.
Packaging: Product packed to be shipped safely, shockproof, unbreakable, anti-spill (no moisture), no bulging when transported.
Couriers: USPS, Fedex, DHL and UPS.
Delivery time: Add the product to the cart to see delivery time.
Shipping price: Add the product to the cart to see the shipping price.
Warranty: Up to 60 days for refunds, exchanges or returns. Pay with PayPal for the best guarantee. Read warranty policies.


 Sold: 0 Unidades.


208 in stock

Date of Delivery: 04/03/2023

From U.S.A Warehouse

US$ 412 US$ 627

Price +VAT 0.00%

Shipping-box International Purchase
     Free Shipping

30 day Money back

208 in stock

Save: US$ 215 (34%)


The specification is subject to change without notice in advance. The brand and product names are trademarks of their respective companies. Any configuration other than original product specification is not guaranteed.

The above user interface picture is a sample for reference. The actual user interface may vary with the updated software version.

    • Unique Feature
      ASRock USB 3.1 Gen2
      – ASRock USB 3.1 Gen2 Type-A Ports (10 Gb/s)
      – ASRock USB 3.1 Gen2 Type-C Port (10 Gb/s)
      ASRock Super Alloy
      – Premium 60A Power Choke
      – Dual-Stack MOSFET (DSM)
      – Nichicon 12K Black Caps (100% Japan made high quality conductive polymer capacitors)
      – Sapphire Black PCB
      – High Density Glass Fabric PCB

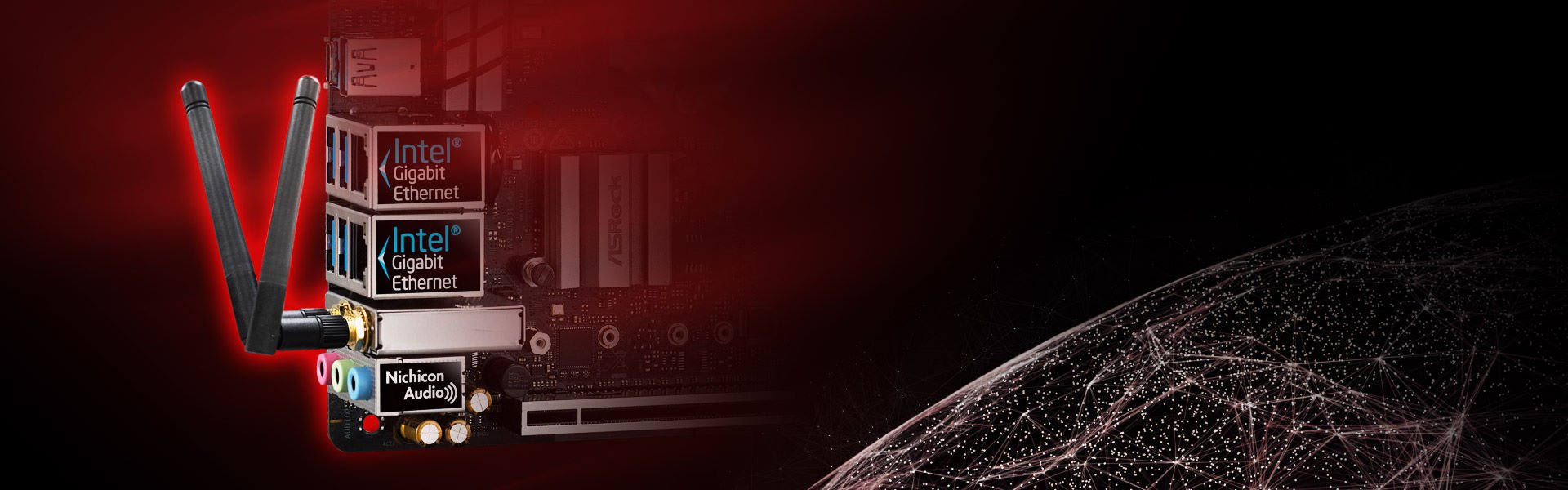

      Intel® 802.11ac WiFi
      ASRock Ultra M.2 (PCIe Gen3 x4 & SATA3)
      ASRock Full Spike Protection (for USB, Audio, LAN Ports)
      ASRock Live Update & APP Shop
    • CPU
      – Supports 9th and 8th Gen Intel® Core™ Processors (Socket 1151)
      – Digi Power design
      – 6 Power Phase design
      – Supports Intel® Turbo Boost 2.0 Technology
      – Supports Intel® K-Series unlocked CPUs
      – Supports ASRock BCLK Full-range Overclocking
    • Chipset
      – Intel® Z390
    • Memory
      – Dual Channel DDR4 Memory Technology
      – 2 x DDR4 DIMM Slots
      – Supports DDR4 4000+(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3200(OC) / 2933(OC) / 2800(OC) / 2666 / 2400 / 2133 non-ECC, un-buffered memory
      – Supports ECC UDIMM memory modules (operate in non-ECC mode)
      – Max. capacity of system memory: 64GB*
      – Supports Intel® Extreme Memory Profile (XMP) 2.0
      – 15μ Gold Contact in DIMM Slots

      *Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows® 32-bit OS. For Windows® 64-bit OS with 64-bit CPU, there is no such limitation.
    • BIOS
      – 128Mb AMI UEFI Legal BIOS with multilingual GUI support
      – ACPI 6.0 Compliant wake up events
      – SMBIOS 2.7 Support
      – CPU, DRAM, PCH 1.0V, VCCST, CPU Internal PLL Voltage Multi-adjustment
    • Graphics
      – Supports Intel® UHD Graphics Built-in Visuals : Intel® Quick Sync Video with AVC, MVC (S3D) and MPEG-2 Full HW Encode1, Intel® InTru™ 3D, Intel® Clear Video HD Technology, Intel® Insider™, Intel® UHD Graphics
      – DirectX 12
      – HWA Encode/Decode: AVC/H.264, HEVC/H.265 8-bit, HEVC/H.265 10-bit, VP8, VP9 8-bit, VP9 10-bit (Decode only), MPEG2, MJPEG, VC-1
      – Three graphics output options: DisplayPort 1.2 and 2 x HDMI ports
      – Supports Triple Monitor
      – Supports HDMI 1.4 with max. resolution up to 4K x 2K (4096×2160) @ 30Hz
      – Supports DisplayPort 1.2 with max. resolution up to 4K x 2K (4096×2304) @ 60Hz
      – Supports Auto Lip Sync, Deep Color (12bpc), xvYCC and HBR (High Bit Rate Audio) with HDMI 1.4 Port (Compliant HDMI monitor is required)
      – Supports HDCP 2.2 with HDMI 1.4 and DisplayPort 1.2 Ports
      – Supports 4K Ultra HD (UHD) playback with HDMI 1.4 and DisplayPort 1.2 Ports

      *Intel® UHD Graphics Built-in Visuals and the VGA outputs can be supported only with processors which are GPU integrated.
    • Audio
      – 7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)*
      – Premium Blu-ray Audio support
      – Supports Surge Protection
      – Nichicon Fine Gold Series Audio Caps

      *To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.
    • LAN
      – Gigabit LAN 10/100/1000 Mb/s
      – 1 x Giga PHY Intel® I219V, 1 x GigaLAN Intel® I211AT
      – Supports Wake-On-LAN
      – Supports Lightning/ESD Protection
      – Supports Dual LAN with Teaming*
      – Supports Energy Efficient Ethernet 802.3az
      – Supports PXE

      *Teaming is supported on Windows® 10 RS2 and above.
    • Wireless LAN
      – Intel® 802.11ac WiFi Module
      – Supports IEEE 802.11a/b/g/n/ac
      – Supports Dual-Band (2.4/5 GHz)
      – Supports high speed wireless connections up to 433Mbps
      – Supports Bluetooth 4.2 / 3.0 + High speed class II
    • Slots
      – 1 x PCI Express 3.0 x16 Slot (PCIE1: x16 mode)*
      – 1 x Vertical M.2 Socket (Key E) with the bundled WiFi-802.11ac module (on the rear I/O)

      *Supports PCIe riser cards to extend one x16 slot to two x8 slots
      Supports NVMe SSD as boot disks
    • Storage
      – 6 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, RAID 5, RAID 10, Intel® Rapid Storage Technology 16), NCQ, AHCI and Hot Plug*
      – 1 x Ultra M.2 Socket, supports M Key type 2230/2242/2260/2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x4 (32 Gb/s)**

      *If M2_1 is occupied by a SATA-type M.2 device, SATA3_1 will be disabled.

      **Supports Intel® Optane™ Technology
      Supports NVMe SSD as boot disks
      Supports ASRock U.2 Kit

    • Connector
      – 1 x TPM Header
      – 1 x Chassis Intrusion Header
      – 1 x CPU Fan Connector (4-pin)*
      – 1 x Chassis Fan Connector (4-pin)**
      – 1 x Chassis/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)***
      – 1 x 24 pin ATX Power Connector
      – 1 x 8 pin 12V Power Connector
      – 1 x Front Panel Audio Connector
      – 1 x USB 2.0 Header (Supports 2 USB 2.0 ports) (Supports ESD Protection)
      – 1 x USB 3.1 Gen1 Header (Supports 2 USB 3.1 Gen1 ports) (Supports ESD Protection)

      *The CPU Fan Connector supports the CPU fan of maximum 1A (12W) fan power.

      **The Chassis Fan Connector supports the chassis fan of maximum 1A (12W) fan power.

      ***The Chassis/Water Pump Fan supports the water cooler fan of maximum 2A (24W) fan power.
      CHA_FAN1/WP can auto detect if 3-pin or 4-pin fan is in use.

    • Rear Panel I/O
      – 2 x Antenna Ports
      – 1 x PS/2 Mouse/Keyboard Port
      – 2 x HDMI Ports
      – 1 x DisplayPort 1.2
      – 2 x USB 2.0 Ports (Supports ESD Protection)
      – 5 x USB 3.1 Gen2 Type-A Ports (10 Gb/s) (Supports ESD Protection)
      – 1 x USB 3.1 Gen2 Type-C Port (10 Gb/s) (Supports ESD Protection)
      – 2 x RJ-45 LAN Ports with LED (ACT/LINK LED and SPEED LED)
      – HD Audio Jacks: Line in / Front Speaker / Microphone
    • Software and UEFI
      – ASRock A-Tuning
      – ASRock XFast LAN
      – ASRock EZ Mode
      – ASRock Full HD UEFI
      – ASRock My Favorites in UEFI
      – ASRock Instant Flash
      – ASRock Internet Flash
      – ASRock Easy RAID Installer

      *These utilities can be downloaded from ASRock Live Update & APP Shop.
    • Support CD
      – Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar
    • Accessories
      – Quick Installation Guide, Support CD, I/O Shield
      – 2 x SATA Data Cables
      – 2 x ASRock WiFi 2.4/5 GHz Antennas
      – 1 x Screw for M.2 Socket
    • Hardware Monitor
      – Temperature Sensing: CPU, Chassis, Chassis/Water Pump Fans
      – Fan Tachometer: CPU, Chassis, Chassis/Water Pump Fans
      – Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis, Chassis/Water Pump Fans
      – Fan Multi-Speed Control: CPU, Chassis, Chassis/Water Pump Fans
      – CASE OPEN detection
      – Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore
    • Form Factor
      – Mini-ITX Form Factor: 6.7-in x 6.7-in, 17.0 cm x 17.0 cm
    • OS
      – Microsoft® Windows® 10 64-bit
    • Certifications
      – FCC, CE
      – ErP/EuP ready (ErP/EuP ready power supply is required)
